Amibroker Datafeed - Flattrade

FlatTrade Account

If you want to open account with Flattrade kinndly use this link https://openaccount.flattrade.in/O_FT038256

Donate

If you like my codes, consider for a donation. UPI details given in right side tab and in my telegram channel

Instructions

Points to Remember for Data Feed read this post.

Live Updates/instructions will be given in the telegram channel EasySimpleTradeUpdates

Join falttrade official telegram group @FlattradeAPISupport to get offical support

FlatTrade API

Get API from from Flattrade . Watch this video . Only for API . For Login and Orders new AFL available.

Step 0: Amibroker

Install Amibroker. No need to create a database.

Step 1: RAM Disk

Download  1 Install RAM Disk.bat batch file and double click to execute. After installation complete , it open Ram Configuration .

Change these two. File System to FAT32 and Untick Create Temp Folder. Keep Drive letter as R. Size 64MB. Leave others default as in image. Then click ok.

Alternatively (Without Batch Script) download RAM Disk from here and Install. Watch this video for installation instructions. Open ram configuration , from start menu and set above settings.

Step 2: Python

Download 2 Install Python.bat batch file and double click to execute. It will Install 3.13.7.

Alternatively (Without Batch Script) download official Python 3.13.7 or latest version from here . Watch this video for installation instructions . Jupyter notebook not required.

Step 3: Python Libraries

Download 3 Install Py Libraries.bat this batch file and double click to execute. It update PIP and install required libraries.

Alternatively you can install required libraries manually. Open Command Prompt and enter following commands.

PIP Update

python.exe -m pip install --upgrade pip

Install Libraries

python.exe -m pip install requests==2.32.5 pyotp==2.9.0 websocket-client==1.9.0 aiohttp==3.12.15 pandas==2.3.2 pywin32==311 nest-asyncio==1.6.0 PyJWT==2.10.1 selenium==4.38.0 webdriver-manager==4.0.2 seleniumbase==4.44.17

Here PyJWT Selenium webdriver-manager seleniumbase are not required for Flattrade but required for other brokers.

Step 4: Create Folders and Download Files

Download 4 Flattrade Ami32.bat for Amibroker 32 bit and Windows 64bit or Download 4 Flattrade Ami64.bat for Amibroker 32 bit and Windows 64bit . Double click to execute .

It creates required folders, download files and put in respective folder.

Alternatively (Without Batch Script)  Create a Folder in C Drive as 'API' and 'HistoricalData'. Then keep drive letter as 'R'. In codes , these are default path to be used. if you want different paths change them in codes. Put all .csv files .py scripts in API folder. Ram Disk R is for to save response file. HistoricalData folder is for long period data download. All codes download here. Download Flattrade Login 1.py and Flattrade Limits 1.py and Put these two scripts in API folder (C:\API) . Download Flattrade Dasboard.afl  and put in custom folder. Download format file OneMinuteFeed.format . Put the files in Format folder in Amibroker installation folder. For 32bit it is C:\Program Files (x86)\AmiBroker\Formats. OneMinuteFeed is for live feed. Download FlatTrade OneMinuteFeed.py and FlatTrade Backfill.py and put in C:\API folder . Open import.types file in the format folder by notepad add the following line.

OneMinuteFeed (*.*)|*.*|OneMinuteFeed.format

and save it. it is for manual importing data files from Amibroker Import ASCII.

Step 5: Database

Download 5 Database.bat for Amibroker 32 bit and Windows 64bit or Download 5 Database Ami64.bat for Amibroker 32 bit and Windows 64bit.

Alternatively Create new database with base time interval 1 minute. Keep it default database. Download Dummysymbol.csv and import using OneMinuteFeed.format .

Login Script

From C:\API folder, open Flattrade Login 1.py file in IDE or in notepad.

Change your credentials with in the quotes. Change User ID, Password, TOTP Key, API Ket and API Secret . In the login_file drive letter R is the RAM disk drive letter. check this you are also using the same. It can run by from IDLE run module or double click to Execute. In Limits file no need to change anything. Limits file can run from Amibroker only.

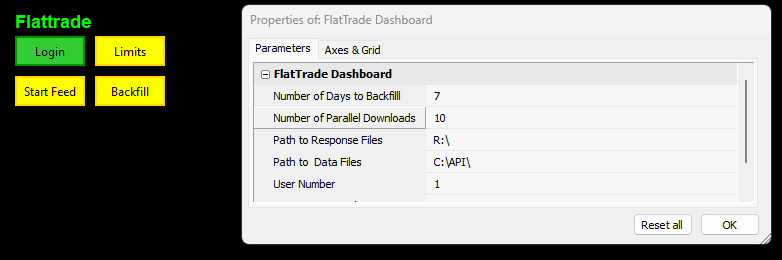

Flattrade Dashaboard

Apply Flattrade Dasboard.afl on chart. You can apply on background sheet also like Sheet 2, Sheet 8 etc.

Usernum given as in parameter. it is for multiple users. for single user , use the default. Also the same number used in variables and scripts.

Check Parameter C:\API\ Driver letter and Folder Name are same as yours.

Login Button, It execute login script and if login success execute limits script and Show the User ID and Cash Balance.

Limit Button to get Limits after login successful.

StartFeed is to start feed. to stop feed just close the CMD window.

Backfill to backfill as per given number of days. 0 is for current day. 1 is for yesterday and today. If yesterday is holiday, it download today only. Files are download to RAM disk , so use this for few days data only. For longer period use Historical Data button.

Historical Data download data by given From to date. It have option to Import and Delete. It download data in Historical Folder. If Import is Yes. Then it Import. If Delete is Yes, then it delete after import.

EOD Data is download data in daily timeframe. Use this data in separate database.

Login not work in morning between 5 to 7. Today login/token work upto tomorrow 5AM. If login in one pc, you can use the login response file in any PC and use, but don't use websocket in multiple PCs.

Scrip Master

For Backfill and Live we need to create ScripMaster.csv , which have  a symbol list with exchange, symbol , token. For stocks equity/futures, we need to create NSEEquityList.csv which have symbol name. Sample is given in API folder.  For Index and MCX, input can give in parameter of scrip master afl. Then click respective button. It create a csv file ***Master.csv. Then do this for all required symbols. Then click join files. Now all ***Master.csv are combined and new file created as ScripMaster.csv . This is the token list we use for historical data and live data. This exchange token is same for all broker. I think Fyers  and zerodha have different .

The next version Scrip Master have more features. It is under development. It import expiry data, exchange, lot size, strike difference etc to Amibroker. It is useful for all options users even you not use my datafeed or order place. Currently in options order afl, manually we give them. With this new scrip master, no need for that.

To use stock options, you need to add points between strike in "Point Value" . Upcoming scrip master do this. Before that you need DM me. Then create a watchlist which symbols you want to add options symbols. Then apply ExportStrike afl. ( Batch script download this afl also, if not download from GitHub) Apply on analysis. Select the watchlist. Set number of strikes in parameter. I think 0 give only atm. First click explore. Check all columns ok. Then click scan. It create Options list.csv in API folder. Now ScripMaster afl, click stock options. Then click join files.

Now you can backfill , Historical Data and Live Feed.

Backfill or live feed data go to opened database. So, if other data feed open, if live feed script running or strat backfill script,  it will get filled.

Backfill

During backfill, if you get this error " 'str' object has no attribute 'get'. No retry." means broker not give data for them, usually they are far OTM and illiquid scrips. Download Historical data in 1 min timeframe. I checked 15 min, It gives wrong candle on split days.

Live Feed

if you click Start Feed and it come like this, it is ok, tomorrow you are ready for live feed. to stop datafeed, just close the cmd window.

PreMarket Data

if you want Pre Market data, disable these two lines by put # at start of the line. it gives 9:00 and 9:07 tick for stocks. For Nifty and Sensex, 9:00 to 9:07 continuous candle
